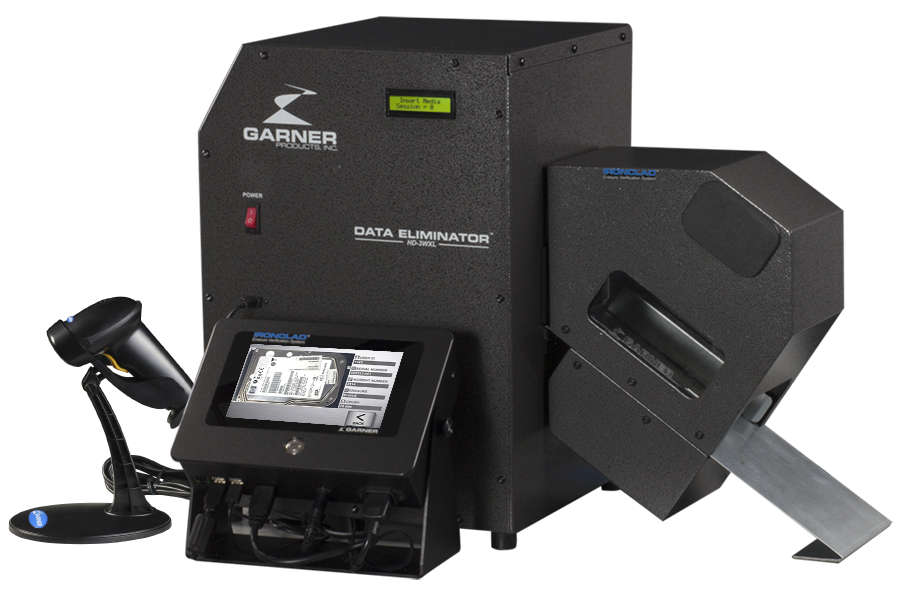

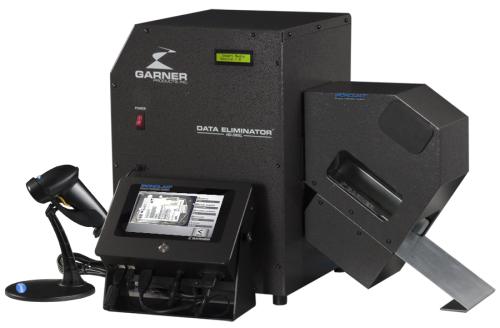

Hard Drive Degausser & Tape Degausser HD-3XTL IRONCLAD

Erasure Verification System

In just seconds, the HD-3XTL hard drive degausser with IRONCLAD verification completely erases all data on hard drives and tape while also verifying and documenting the erasure.  As the media travels down the exit slide, Garner's exclusive IRONCLAD system automatically captures a JPG image of the media and generates a proof-of-erasure and destruction certificate for audit and archival purposes. The HD-3XTL's 10,000 gauss field with an oversized media slot will permanently erase all data on high-coercivity (magnetic) hard drives and tape up to 1.7" in height.

Hard Drive Degausser & Tape Degausser | Erasure Verification System

HD-3XTL IRONCLAD

Mobility Package

IRONCLAD Certificate

IRONCLAD® Erasure and Destruction Verification System

Garner's exclusive IRONCLAD Erasure and Destruction Verification System automatically captures a JPG image of the media immediately after it is degaussed and generates an exportable proof-of-destruction certificate for audit and archival purposes.

ironclad hard drive destruction verification certificate

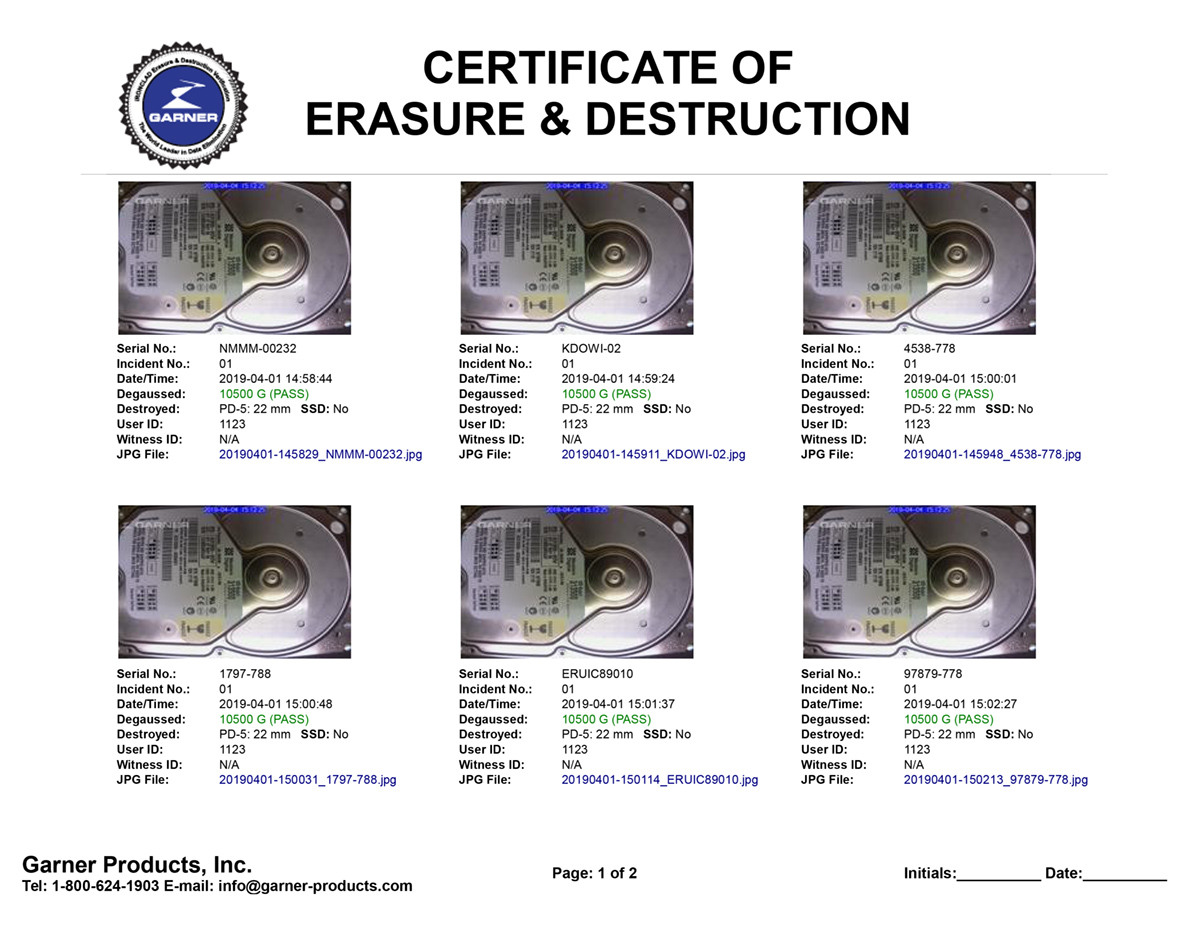

Destruction Certificate

ironclad hard drive destruction verification screenshot

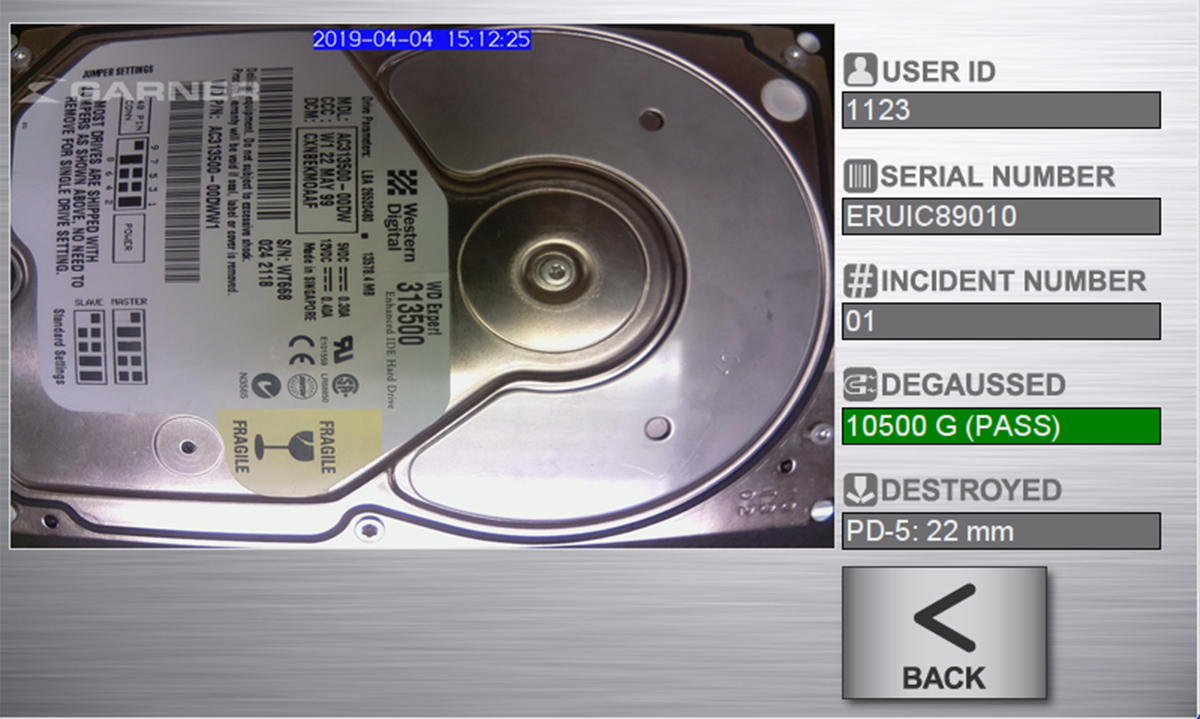

Record Detail Screen



HD-3XTL IRONCLAD Data Eliminator Benefits & Features

  • 10,000 gauss completely erases all data on hard drives and tapes
  • Erases and verifies up to 240 pieces of media per hour
  • Tracks and stores media serial numbers, user ID, witness ID, and date in a password-protected system
  • Provides proof media was degaussed by capturing a JPG image of the hard drive immediately after degaussing
  • Numerically records gauss field strength
  • Informs operator and records the erasure results immediately after each cycle with green "Pass" or red "Fail"
  • If used with the PD-5 hard drive and solid-state destroyer, records, and documents the crush depth of the PD-5
  • Generates Certificates of Erasure and Destruction with images of the media
  • Generates exportable JPG images and destruction results for audit and archival purposes in PDF, CSV, and Excel file formats
  • IRONCLAD export options: Flash, ethernet, or optional optical media burner
  • Operates in 2 modes: "Verification Mode" with prompts for new operators; and "Processing Mode" for faster processing
  • UL, IEC, CSA, CE and RCM certified
  • TAA compliant
  • FCC compliant



Data Security Best Practices: Degauss Before you Destroy

  • Physical destruction (i.e., shredding, crushing, piercing, bending) of hard drives without first being degaussed leaves data behind.  In fact, a shredded but un-degaussed 2 mm²  hard drive fragment can contain the equivalent of approximately 504,000 pages of paper containing sensitive and confidential data.
  • The 10,000 gauss field of the high-volume HD-3XTL degausser magnetically erases all data on hard drives making them safe and secure for disposal.  It is essential that every hard drive be degaussed prior to shredding, crushing, or disposal to ensure the data is unrecoverable.
  • Although physical destruction of a hard drive is not necessary after the drive has been degaussed, physically damaging the hard drive casing and bending the disk platters provides visual confirmation that the hard drive has been securely processed; discourages unscrupulous (but fruitless) attempts to retrieve data from the drive; and indicates the drive is ready to leave the controlled environment for disposal.

  • Note:  Solid-state media cannot be degaussed.  Physical destruction of the media with the SSD-1 solid-state destroyer is recommended prior to the media leaving its secure environment.

Degauss vs. Overwrite

Overwriting is a method where a random pattern of usually "1" and "0" is written to every part of the drive, frequently three times, to obliterate the underlying data.  The advantage of this method is the drive can be re-used.  The disadvantages are:  it takes a skilled operator to ensure the overwriting is done correctly; non-functioning sectors of the hard drive cannot be overwritten allowing data to remain on the drive; it takes a considerable amount of time-hours, and therefore electricity; and it is not regarded as failsafe, or permissible for the highest data security standards such as the NSA, CIA, or DoD.

Degaussing is the process of exposing the media to a strong magnetic field of sufficient strength to magnetically destroy the data.  The advantages of degaussing are:  a skilled operator is not required to operate a degausser; the magnetic field destroys all the data on the drive in approximately 1/10 of a second regardless of whether the drive is functioning or non-functioning. Degaussing is recognized by the NSA and DoD as an appropriate method of secure data destruction.  The disadvantage of degaussing is the hard drive cannot be re-used.

After degaussing, the data on a degaussed hard drive simply no longer exists.

Package Includes



hd3 230 210

HD-3XTL High-Volume Degausser



ironclad touchscreen 230

Touch Screen Device



slide

Image Capture System




scanner web

Barcode Scanner and Stand



degauss labels

Degaussed Labels



stylus

Stylus




carrier

Laptop Hard Drive Adapter





Secure and Compliant Data Destruction

The HD-3XTL will help you satisfy the most stringent government and industry data security standards, including:

  • CCPA (California Consumer Privacy Act)
  • DoD Up to Secret Classification
  • GDPR (General Data Protection Regulation)
  • GLBA (Gramm-Leach-Bliley Act)
  • HIPAA (Health Information Portability and Accountability Act)
  • IRS 1075
  • NIST SP 800-88r1
  • PCI DSS 3.2 (Payment Card Industry Data Security Standard)
  • PIPEDA (Personal Information Protection and Electronic Documents Act)

Tested and Verified Erasure

Hard drives erased with the HD-3XTL have been tested and verified by hard drive manufacturers, information recovery companies, and private forensic laboratories, which independently confirmed that no data was recoverable.

Domestic and International Safety Standards

Garner Products, Inc., leads the data destruction industry in product safety by being the first and only U.S. hard drive degausser and destroyer manufacturer to earn certification of our products to UL, IEC, and CSA safety standards from a Nationally Recognized Testing Laboratory (NRTL).

Our products are also independently tested for conformity to CE standards for safety and emissions for the European Union.

These U.S. and international certifications identify Garner’s products as safe to operate in data centers, hospitals, offices, and other sensitive environments around the world.

Garner’s products are certified to:

Sustainable Practices. Ecofriendly Products

We are proud to be an eco-friendly manufacturer in California, the state that sets the standard for environmental protection. At every stage of the manufacturing process, from product design through manufacturing and shipping, we apply processes and use materials that minimize environmental impact.
Learn more

Data Destruction Packages

For even greater destruction security add our  NSA EPL-listed PD-5 Hard Drive and Solid-State Memory Destroyer that destroys magnetic, solid-state, solid-state hybrid, flash, and thumb drives.

Packages

rcc 35ssdic bins 210

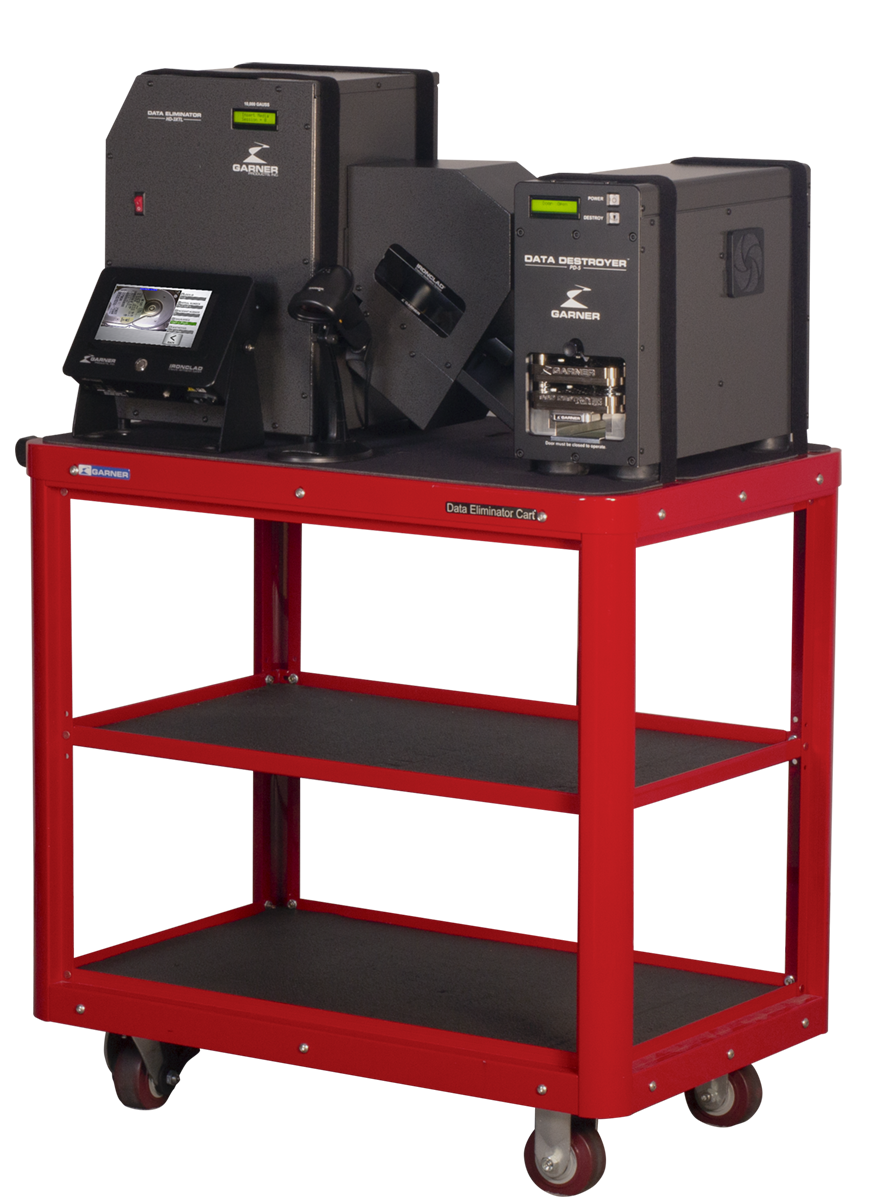

Data Eliminator Cart

Your choice of destruction equipment securely mounts to the cart creating a comprehensive mobile media sanitization solution.
Learn More

ddr 35ssd ic red 224

Degauss Destroy Recycle WorkStations

The locking storage compartment allows you to securely store media awaiting processing.
Learn More

mobile degauss and destroy package including custom transport case

DDM Degauss and Destroy Mobility Options

Gain mobility while satisfying stringent security requirements by pairing a transport case with your custom selection of destruction products.
Learn More

degauss and destroy all in one package

DD Degauss Destroy Packages

Create a package with our industry-leading hard drive degaussers and destroyers that fit your data security need.
 Learn More

Accessories

SW 2 red 224

Data Elimination Cart

The RCC Cart offers an agile and safe solution for mobile operations.
Learn More

SW 2 red 224

SW-2 Secure Workstation

Lets you create a destruction workstation in our custom-configured SW-2 Table featuring a locked storage compartment for securely storing media awaiting erasure.
Learn More

bluebin 210

Recycle Bin

Large blue recycle bin makes it easy to store media that has been destroyed and ready to be recycled.
Learn More

RedYellowBins

Media Bins

Color-coded media bins. The red bin is labeled “Media to be Degaussed” and the yellow bin is labeled “Degaussed Media”.
Learn More



degauss labels 224

Degaussed Labels

Sold in a pack of 1,000 labels.
Learn More

HD-3XTL IRONCLAD  Specifications

  • Part Number

    HD-3XTL IRONCLAD • HD-3XTLE IRONCLAD

  • Certifications/Listings

    ETL Listed • UL, IEC, CSA, CE and RCM certified • TAA compliant •FCC compliant

  • Magnetic Field

    1 tesla (10,000 gauss) nominal

  • Erasure Verification

    IRONCLAD

  • Storage Capacity

    16 GB

  • Degausser throughput (per hour)

    Erases up to 4,500 (1.8 in.) hard drives *
    Erases up to 4,500 (2.5 in.) hard drives*
    Erases up to 450 (3.5 in.) hard drives
    *Bundle up to 10 - 1.8" and 2.5" drives depending on drive dimensions.

  • Degausser with IRONCLAD throughput (per hour)

    Erases and verifies up to 240 hard drives

  • Media Types

    Hard drives: Laptop, standard, and network hard drives* up to 1.7 in. height
    Tape media:  All LTO, all DLT, 3490, 9940, 3592, AIT, and others
    *All mounting hardware must be removed prior to degaussing.

  • Power

    HD-3XTL: 100~130VAC ±5%, 50/60 Hz*
    HD-3XTLE: 90~250VAC ±5%, 50/60 Hz*
    *Factory configurable
    IRONCLAD: 90-240VAC, 47-440Hz

  • Power Consumption

    HD-3XTL:
    During standby: 53W
    During charge: 188W avg.
    During erase: 53W
    IRONCLAD: 25W

  • Temperature

    41°F - 104°F (5°C - 40°C)

  • Humidity

    10%H - 40%H Without condensation

  • Weight

    HD-3XTL IRONCLAD: 69 lbs. (27 kg.)
    Control head: 3.8 lbs (1.7 kg.)
    This is not a shipping weight

  • Overall Dimensions (HxWxD)

    HD-3XTL IRONCLAD:
    18.9 x 25 x 13 (in.)
    480 x 638 x 328.9 (mm)
    Touchscreen:
    6.6 x 9.6 x 2.5 (in.)
    168 x 244 x 64 (mm)
  • Warranty

    HD-3XTL: One-year manufacturer’s limited warranty standard, optional three-year limited warranty available
    HD-3XTLE • IRONCLAD: One-year manufacturer’s limited warranty standard
    Scanner: Ninety-day manufacturer’s limited warranty standard

  • Made in U.S.A.

    By Garner Products, Inc.
