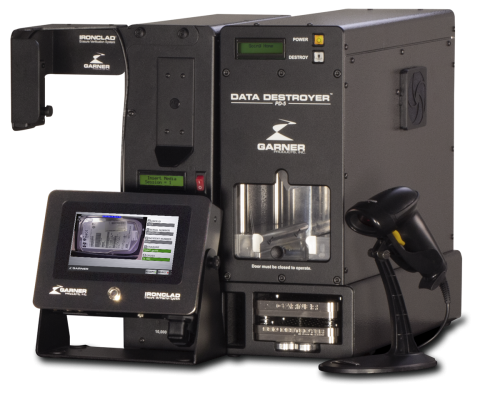

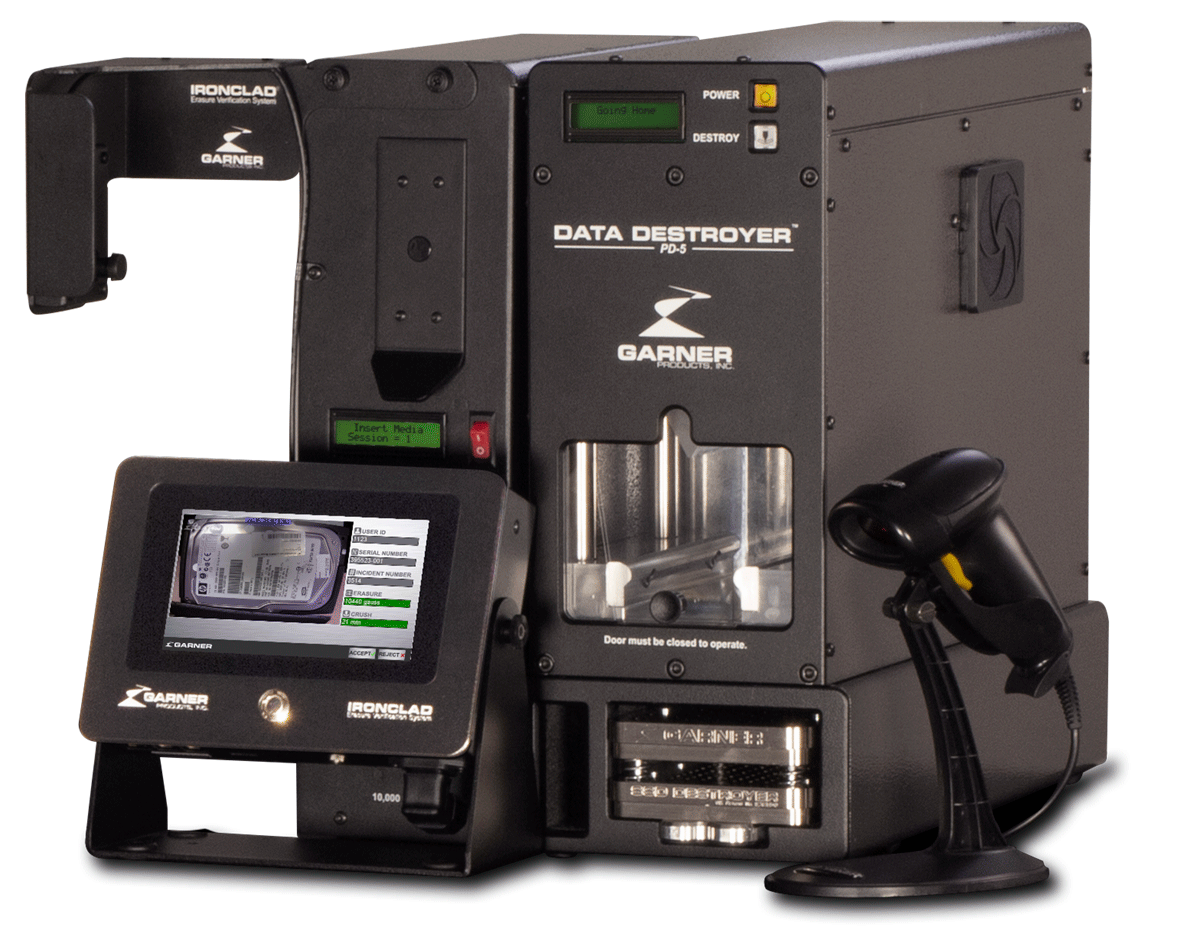

Degausser & Destroyer SPACESAVER IRONCLAD

Regulatory Compliance in a Small Footprint

SPACESAVER IRONCLAD provides complete media erasure in under 8 seconds, NSA-listed physical destruction, and solid-state physical destruction verified with an IRONCLAD Certificate of Erasure and Destruction.

Degausser & Destroyer|Regulatory Compliance in a Small Footprint

SPACESAVER IRONCLAD

IRONCLAD Detailed Record

Certificate of Erasure & Destruction

IRONCLAD® Media Erasure and Destruction Verification System

Garner's exclusive IRONCLAD Erasure and Destruction Verification System automatically captures a JPG image of the hard drive immediately after it is degaussed and generates an exportable proof-of-destruction certificate for audit and archival purposes.

spacesaver certificate 230

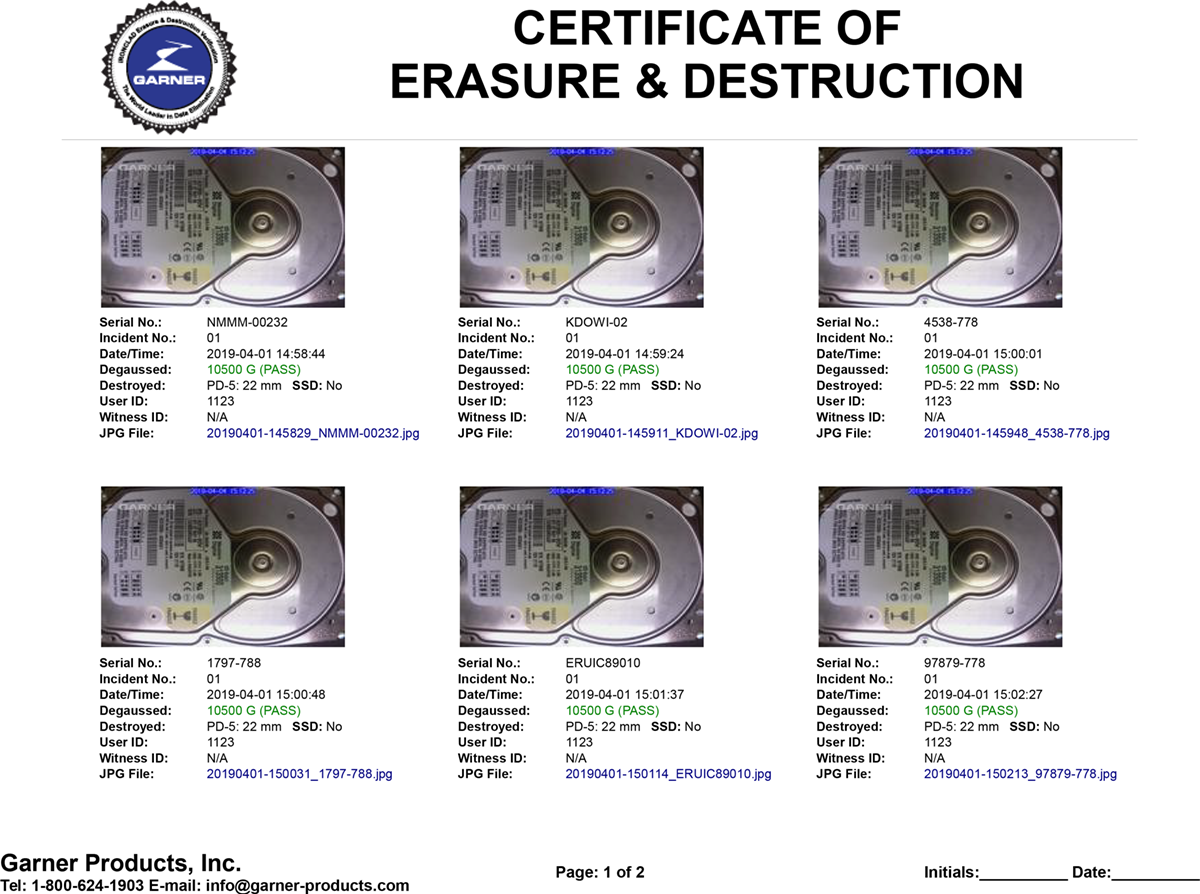

Destruction Certificate



spacesaver record detail 230

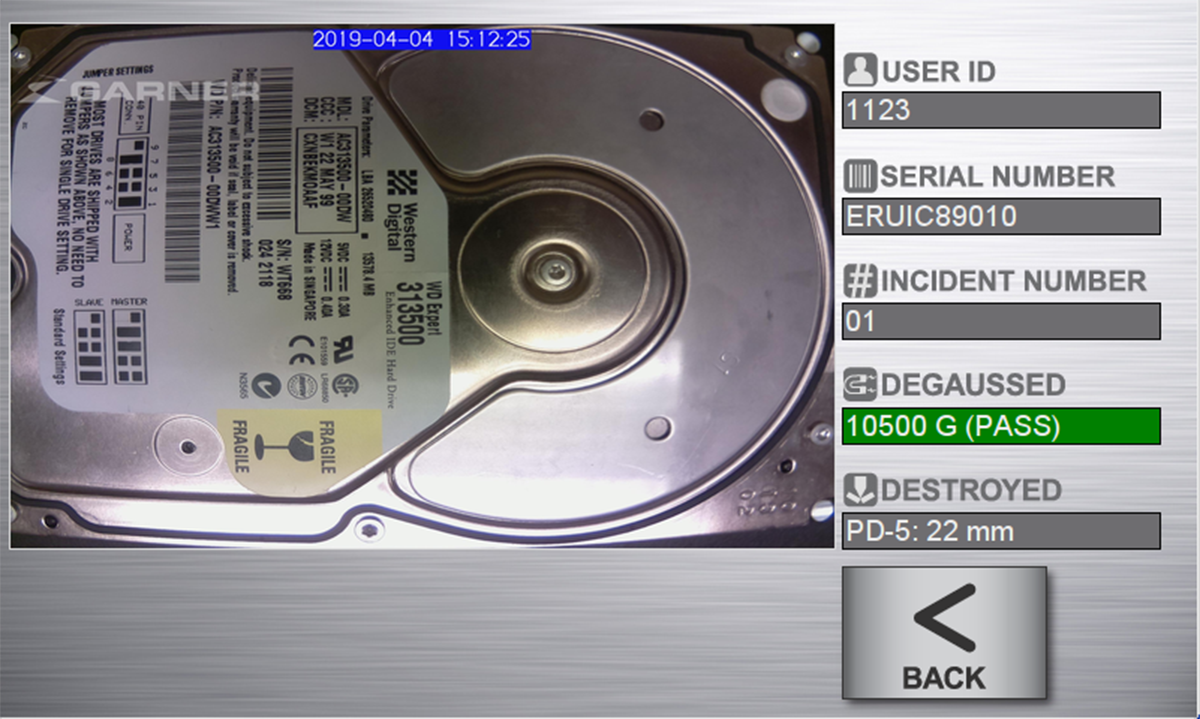

Record Detail Screen







SPACESAVER IRONCLAD Compact Degausser Package Features & Benefits

  • 10,000 Gauss of the HD-2XTSS degausser destroys all data on hard drives and tape in 8 seconds
  • 10+ tons of force and the hardened steel crushing wedge of the PD-5 bend, break and mangle hard drives
  • 90 spikes of the nickel-plated SSD-1 puncture, perforate, and waffle solid-state media, demolishing the individual memory chips preventing data recovery
  • Exportable audit reports are automatically generated of the destroyed media, including JPG images, operator ID, witness ID, date/time, location, and serial numbers
  • Secure password-protected system
  • Degausser's gauss field strength is recorded after every cycle

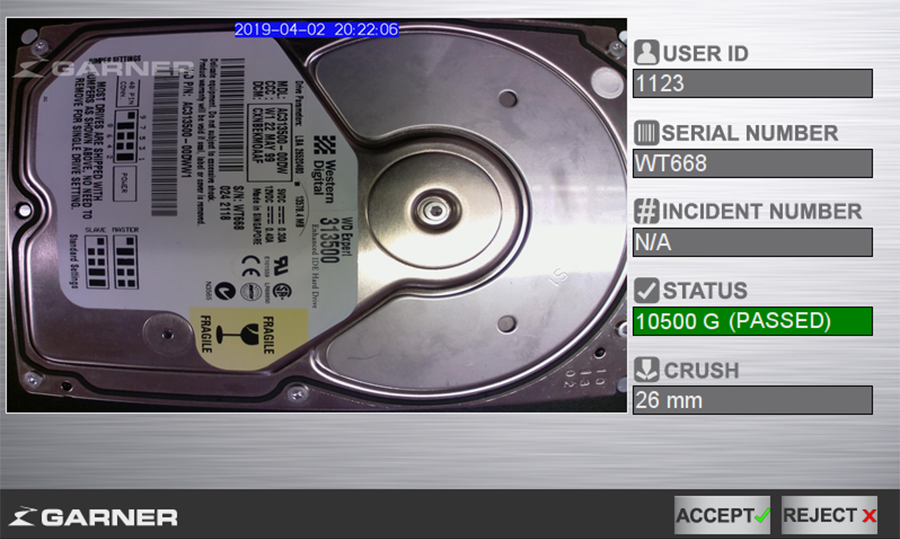

  • The operator is informed and the system records the degausser erasure results and PD-5 crush depth immediately after each cycle
  • IRONCLAD reports are exportable in PDF, CSV, and Excel file formats
  • Operates in 2 modes: "Verification Mode" with prompts for new operators; and "Processing Mode" for faster processing
  • Plugs into a standard wall outlet



Information Security Best Practices: Degauss Before you Destroy

  • Physical destruction of hard drives alone leaves data behind (ie. shredding, crushing, piercing, bending)
  • HD-2XTSS Degausser eliminates all data on the disc platters
  • After degaussing, physical destruction from the PD-5 gives visual confirmation that the hard drive has been securely processed and is ready to leave the controlled environment for disposal or shredding

Note:  Solid-state media cannot be degaussed.  Physical destruction of the media with the SSD-1 solid-state destroyer is recommended before the media leaves its secure environment.

Degauss vs. Overwrite

Overwriting is a method where a random pattern of usually "1" and "0" is written to every part of the drive, frequently three times, to obliterate the underlying data.  The advantage of this method is the drive can be re-used.  The disadvantages are:  it takes a skilled operator to ensure the overwriting is done correctly; non-functioning sectors of the hard drive cannot be overwritten allowing data to remain on the drive; it takes a considerable amount of time-hours, and therefore electricity; and it is not regarded as failsafe, or permissible for the highest data security standards such as the NSA, CIA, or DoD.

Degaussing is the process of exposing the media to a strong magnetic field of sufficient strength to magnetically destroy the data.  The advantages of degaussing are:  a skilled operator is not required to operate a degausser; the magnetic field destroys all data on the drive in approximately 1/10 of a second regardless of whether the drive is functioning or non-functioning. Degaussing is recognized by the NSA and DoD as an appropriate method of secure data destruction. The disadvantage of degaussing is the hard drive cannot be re-used.

After degaussing, the data on a degaussed hard drive simply no longer exists.

Secure and Compliant

The SPACESAVER IRONCLAD will help you meet government and industry data security standards requiring the destruction of sensitive data before disposal, including:

  • CCPA (California Consumer Privacy Act)
  • DoD (Emergency Destruction and up to Secret Classification)
  • GDPR (General Data Protection Regulation)
  • GLBA (Gramm-Leach-Bliley Act)
  • HIPAA (Health Information Portability and Accountability Act)
  • IRS 1075
  • NIST SP 800-88r1
  • PCI DSS 3.2 (Payment Card Industry Data Security Standard)
  • PIPEDA (Personal Information Protection and Electronic Documents Act)

Domestic and International Safety Standards

Garner Products, Inc., leads the data destruction industry in product safety by being the first and only U.S. hard drive degausser and destroyer manufacturer to earn certification of our products to ETL listing, UL, IEC, and CSA certified to safety standards from a Nationally Recognized Testing Laboratory (NRTL).

Our products are also independently tested for conformity to CE standards for safety and emissions for the European Union.

These U.S. and international certifications identify Garner’s products as safe to operate in data centers, hospitals, offices, and other sensitive environments around the world.

Garner’s products are certified to:

Accessories

CASE 25SSD 224

CASE-25SSD

Our transport case lets you take the SPACESAVER to the media.

bluebin 210

Recycle Bin

Large blue recycle bin makes it easy to store media that has been destroyed and ready to be recycled.

RedYellowBins

Media Bins

Color-coded media bins. The red bin is labeled “Media to be Degaussed” and the yellow bin is labeled “Degaussed Media”.

ssd mt10 224

SSD-MT10

The SSD-MT sleeves hold smaller flash and thumb drives when using the SSD-1 solid-state destroyer. Each SSD-MT10 includes 10 individual sleeves.

degauss labels 224

Degaussed Labels

Sold in packs of 1,000 labels.

SpaceSaver IRONCLAD Specifications

  • Part Number

    SSC-25SSD IRONCLAD:North America
    SSC-25SSDA IRONCLAD:LATAM
    SSC-25SSD IRONCLADE:APAC, EMEA

  • Package Includes

    HD-2XTSS, PD-5, SSD-1, SSD-CADDY, IRONCLAD

  • IRONCLAD Includes

    image capture system
    Touchscreen control head
    Report generating software
    Scanner and stand
    Stylus
    Software support for one year

  • Certifications

    HD-2XTSS: ETL Listed • UL, IEC, CSA, CE and RCM certified • TAA compliant • FCC compliant
    PD-5: NSA/CSS Listed  • ETL Listed • UL, IEC, CSA, CE, KC and RCM certified • TAA compliant • FCC compliant
    IRONCLAD:  ETL Listed • UL, IEC, CSA and CE certified • TAA compliant • FCC compliant

  • Magnetic Field

    10,000 Gauss, 1 Tesla

  • Charge Time

    8 seconds

  • Erasure Verification

    IRONCLAD

  • IRONCLAD Storage Capacity

    16 GB

  • Throughput (hard drives per hour)

    HD-2XTSS: Up to 1,920 (1.8 in.); Up to 960 (2.5 in.); Up to 240 (3.5 in.)
    PD-5: Up to 360 1 in. hard drivers per hour (when crushing two 1 in. hard drives at a time)

  • Throughput with IRONCLAD (hard drives per hour)

    240 hard drives

  • Media

    HD-2XTSS: Hard drives: Laptop, standard, network1 to 1.25 inches in height Tape media: All LTO, all DLT, AIT, 2590 Series, 8 mm, and others
    PD-5:  Hard drives up to 2.25 in. in height
    SSD-1: SSD, flash drives, USB thumb drives, mobile phones2, SSHD controller boards
    Scanner: Bar-code scanner scans any type of bar-code

  • Power

    HD-2XTSS: 90-250VAC ±5%, 50/60 Hz
    PD-5: 100-240VAC ±5%, 50/60 Hz
    IRONCLAD: 90~240VAC, 47-440 Hz

  • Power Consumption

    HD-2XTSS: During standby: 24W  During charge: 156W avg.  At the time of erase: 60W
    PD-5: During standby: 90W During crush: 1200W(max)
    IRONCLAD: 15W

  • Degausser System

    Capacitive Discharge

  • Duty Cycle

    Continuous

  • Drawer Capacity/Destruction Chamber Capacity (HxWxD)

    HD-2XTSS: 4.3 x 1.5 x 5.9 (in.) 108 x 31.8 x 148.6 (mm)
    PD-5: 2.3 x 4.9 x 6.8 (in.) 57.4 x 123.7 x 172.2 (mm)
    SSD-1: 0.5 x 3 x 6 (in.) 13.2 x 73.7 x 152.4 (mm)

  • Temperature

    41°F - 104°F (5°C - 40°C)

  • Humidity

    10%H - 40%H Without condensation

  • Weight

    SPACESAVER IRONCLAD: 145 lbs (65.9 kg)
    IRONCLAD control head: 3.8 lb (1.8 kg)

  • Size (HxWxD)

    SPACESAVER IRONCLAD: 18.2 x 17.8 x 23.4 (in.)
    458.7 x 443.7 x 393.6 (mm)
    IRONCLAD control head: 6.6 x 9.6 x 2.5 (in.)
    168 x 244 x 64 (mm)

  • Screen Size

    7 in.

  • Warranty

    HD-2XTSS PD-5: One-year manufacturer’s limited warranty standard, optional three-year limited warranty available
    HD-2XTSSA/E PD-5A/E • IRONCLAD: One-year manufacturer’s limited warranty standard, optional three-year limited warranty available
    Scanner • SSD-1 • SSD-CADDY: Ninety-day manufacturer's limited warranty standard.

  • Made in the U.S.A.

    By Garner Products, Inc.



1 Enterprise SSDs must have rack mounts and metal casings removed prior to degaussing ro destruction. 2 All items must have the battery removed prior to degaussing or destruction.
